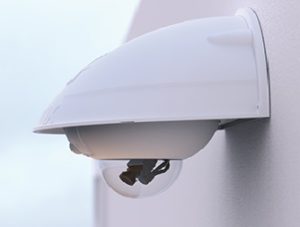

DualDome D15/D16

 Product Info: Mx6 Camera Line Product Portfolio Manual MOBOTIX D15 Camera Tech Spec Sheet DualDome D15 Tech Spec Sheet DualDome D16 Compact Guide: MxActivitySensor  Configurator
One Camera. Dual HiRes.
Two lenses, two HiRes image sensors, internal storage and a dual image of maximum 12.5 megapixels make the DualDome an efficient security solution: You can secure two different areas with just one camera, for example. All without vulnerable mechanical components!
D15 with Panorama lens carrier: For two lenses B041 (to be ordered separately) which together ensure a high-resolution 180° panorama image that is up to 12 megapixels in size and is corrected by means of the integrated camera software.



D15 Body
Indoor/Outdoor: Dual lens indoor (IP54), -30…+60°C • outdoor (IP65/IK10) when used with wall mount • IP66/IK10+ with vandalism set
Lenses:
(eq. 35mm)
Camera body for 1 or 2 lens units
B036 – B237
horizontal angle 103° to 15°
(to be ordered separately)
Resolution: Up to 2 x 6MP (6144 x 2048 pixels, dual image)
Zoom/Pan: Continuous up to 8x Zoom & Pan/Tilt (digital)
Max. Frame Rate: 6MEGA: 8 fps • 3MEGA: 15 fps • MEGA: 30 fps
Sensitivity: 5MP Day: 0.25 lux (t=1/60s) • 0.013 lux (t=1/1s)
5MP Night: 0.05 lux (t=1/60s) • 0.0025 lux (t=1/1s)
6MP Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
6MP Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)
Interfaces: Ethernet 10/100 Mbit, MiniUSB, MxBus
Internal DVR: MicroSD card (4 GB card pre-installed)
Audio/Telephony: Bidirectional, IP telephony (VoIP)
Power Supply PoE
Software Features: MxManagementCenter, MxControlCenter, MxEasy, MOBOTIX App, MxActivitySensor, FTP, E-Mail, video alarm management, video motion, Multiview, event search
Videocodecs: MxPEG, MJPEG
External Storage: On PC/Server/NAS
Article No.: MX-D15Di-Sec
D16 Body
Indoor/Outdoor: Dual lens indoor (IP54), -30…+60°C • outdoor (IP65/IK10) when used with wall mount • IP66/IK10+ with vandalism set
Lenses:
(eq. 35mm)
Camera body for 1 or 2 lens units
B036 – B237
horizontal angle 103° to 15°
(to be ordered separately)
Resolution: Up to 2 x 6MP (6144 x 2048 pixels, dual image)
Zoom/Pan: Continuous up to 8x Zoom & Pan/Tilt (digital)
Max. Frame Rate: 42@HD • 34@FullHD • 12@6MP • 6@2x 6MP
Sensitivity: Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)
Interfaces: Ethernet 10/100 (RJ45), USB; IO and
RS232 via additional MxInterface Box
Internal DVR: MicroSD card (4 GB card pre-installed)
Audio/Telephony: Bidirectional, IP telephony (VoIP)
Power Supply PoE
Software Features: MxManagementCenter, MxControlCenter, MxEasy, MOBOTIX App, MxActivitySensor, FTP, E-Mail, video alarm management, video motion, Multiview, event search
Videocodecs: MxPEG, MJPEG, H.264
External Storage: On PC/Server/NAS
Article No.: Mx-D16A
