Allround M25/M26

 Product Info: Mx6 Camera Line Product Portfolio M25 Camera Manual (6MP) Tech Spec Sheet Allround M25 Tech Spec Sheet Allround M26  Configurator



More Camera For Less. Guaranteed!

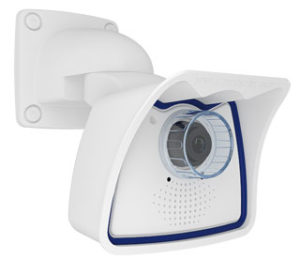

The Allround family comprises compact, cost-efficient and extremely powerful all-round cameras featuring 6MP Moonlight technology and a vast choice of lenses including hemispheric models. Fully equipped with IP66-certified housing and long-term internal storage on a MicroSD card.

  • Camera-Body with freely configurable lens: Super Tele (8°) … Ultra Wide (103°)
  • M25/M26 with pre-mounted 180° hemispheric lens (not interchangeable)
  • Latest MOBOTIX 6MP Moonlight Technology sensor delivers excellent image quality
  • Fast and simple installation on walls, poles or ceilings
  • Integrated DVR for HiRes video recording without affecting the network load
  • Sturdy, low-maintenance and weatherproof from -30 to +50 °C (-22 to +122 °F) (IP 66)
  • Digital, continuous panning, tilting, zooming
  • Microphone, speaker and intelligent movement sensors (MxActivitySensor)



M25 Body M25
Indoor/Outdoor: In/Outdoor, weatherproof (IP66), -30…+50°C In/Outdoor, weatherproof (IP66), -30…+50°C
Lenses:
(eq. 35mm)
B036 up to B500
horizontal angle 103° to 8°
B016 (fixed) horizontal angle 180°
Max. Image Size: Color + B/N:
6MP (3072 x 2048)
Color:
6MP (3072 x 2048)
Image Sensor: Color + B/N:
6MP (3072 x 2048)
Color:
6MP (3072 x 2048)
Max. Frame Rate (MxPEG): 30@HD • 20@FullHD • 8@6MP 30@HD • 20@MEGA • 8@6MP
Min. Light Intensity: Color:
0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
B/W:
0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)
Color:
0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Interfaces: Ethernet 10/100, IPv4/IPv6, MiniUSB, MxBus;
IO and RS232 via Interface Boxes (accessories)
Ethernet 10/100, IPv4/IPv6, MiniUSB, MxBus;
IO and RS232 via Interface Boxes (accessories)
Internal DVR: MicroSD (4 GB card pre-installed) MicroSD (4 GB card pre-installed)
Audio/Telephony Bidirectional, IP telephony (VoIP) Bidirectional, IP telephony (VoIP)
Power Supply: PoE (IEEE 802.3af) PoE (IEEE 802.3af)
Software Features: FTP, E-Mail, video alarm management,
video motion, Multiview, event search, MxActivitySensor
FTP, E-Mail, video alarm management,
video motion, Multiview, event search, MxActivitySensor
Arming • Triggering: 365-day schedule • multiple events 365-day schedule • multiple events
External Storage: PC/Server/NAS PC/Server/NAS
Article No.: MX-M25-BOD1
MX-M25-BOD1-N
MX-M25-D016









M26 Body M26
Indoor/Outdoor: In/Outdoor, weatherproof (IP66/IK10), -30…+50°C In/Outdoor, weatherproof (IP66/IK10), -30…+50°C
Lenses:
(eq. 35mm)
B036 up to B500
horizontal angle 103° to 8°
B016 (fixed) horizontal angle 180°
Max. Image Size: Color + B/N:
6MP (3072 x 2048)
Color:
6MP (3072 x 2048)
Image Sensor: Color + B/N:
6MP (3072 x 2048)
Color:
6MP (3072 x 2048)
Max. Frame Rate (MxPEG): 42@HD • 34@FullHD • 12@6MP 42@HD • 34@MEGA • 12@6MP
Min. Light Intensity: Color:
0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
B/W:
0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)
Color:
0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Interfaces: Ethernet 10/100, IPv4/IPv6, MiniUSB;
IO and RS232 via Interface Boxes (accessories)
Ethernet 10/100, IPv4/IPv6, MiniUSB;
IO and RS232 via Interface Boxes (accessories)
Internal DVR: MicroSD (4 GB card pre-installed) MicroSD (4 GB card pre-installed)
Audio/Telephony Bidirectional, IP telephony (VoIP) Bidirectional, IP telephony (VoIP)
Power Supply: PoE (IEEE 802.3af) PoE (IEEE 802.3af)
Software Features: FTP, E-Mail, video alarm management,
video motion, Multiview, event search, MxActivitySensor
FTP, E-Mail, video alarm management,
video motion, Multiview, event search, MxActivitySensor
Arming • Triggering: 365-day schedule • multiple events 365-day schedule • multiple events
External Storage: PC/Server/NAS PC/Server/NAS
Article No.: Mx-M26A-6D
Mx-M26A-6N
Mx-M26A-6D016
